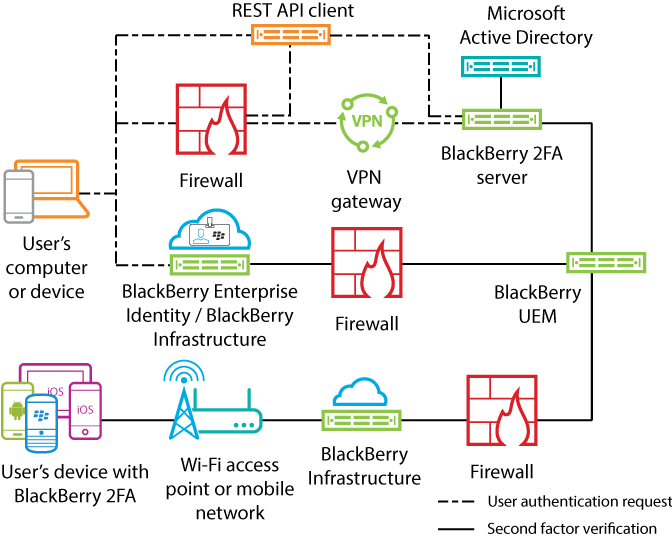

Architecture:
BlackBerry 2FA



Component
Description
User's computer or device
A user's computer or device is any computer or device, from inside or outside a firewall, that is used to connect to a resource that requires two-factor authentication.
BlackBerry 2FA
 server
The
BlackBerry 2FA
 server connects to
BlackBerry UEM
 to find the devices associated with a user and to send authentication requests to the
BlackBerry 2FA
 app that's installed on devices.
VPN gateway (optional)
The VPN gateway is a computer that accepts VPN connections to your organization's network.
This feature requires the
BlackBerry 2FA
 server.
REST API client (optional)
The REST API client is a customer-defined, on-premises service that authenticates users who access it through the
BlackBerry 2FA
 server's REST API.
This feature requires the
BlackBerry 2FA
 server.
BlackBerry Enterprise Identity
 (optional)
BlackBerry Enterprise Identity
 provides single sign-on (SSO) to cloud services, such as
Box
Salesforce
, and
G Suite
Enterprise Identity
 connects directly to the
BlackBerry 2FA
 service in
BlackBerry UEM
 or
BlackBerry UEM Cloud
.
BES12
, or
BlackBerry UEM
BlackBerry UEM Cloud
BlackBerry UEM
 also manages
BlackBerry 2FA
 user configuration through the
BlackBerry 2FA
 profile and the use of one-time password (OTP) tokens.
User's device with
BlackBerry 2FA
For
iOS
 and
Android
 devices,
BlackBerry 2FA
 is included in the
BlackBerry UEM Client
. For
BlackBerry 10
 devices, users install the
BlackBerry 2FA
 app.
