Configure failover delivery gateways

The Delivery Gateway Failover feature adds redundancy to various devices such as phones that can be connected to multiple gateways. If one gateway fails, the other gateway takes over.
Most gateways have only one type of supported gateway and you enable a second gateway of the same type on a failover server. However, certain device groups have multiple gateways that manage alerts for the device. You can use a different gateway if the device is in the same group, where a group includes related devices such as phones, email, or text messaging.
Configuration of delivery gateway failover is handled from the Devices screen. The following list shows groups with multiple devices or gateways and specifies which gateways can be used with a device group.
  • Email
    :
    AtHoc
    Cloud Delivery Service (East and West), OEM Cloud Delivery Service (East and West)
  • Pager
    :
    AtHoc
    Cloud Delivery Service (East and West)
  • Phone
    :
    AtHoc
    Cloud Delivery Service (East and West)
  • Texting
    :
    AtHoc
    Cloud Delivery Service (East and West)
  • Fax
    :
    AtHoc
    Cloud Delivery Service (East and West)
  • TTY
    :
    AtHoc
    Cloud Delivery Service (East and West)
  1. In the navigation bar, click The Settings icon.
  2. In the
    Devices
    section, click
    Devices
    .
  3. On the
    Personal Devices
    tab, click a device name.
  4. On the device details  screen, click
    Edit
    .
  5. Assuming that the device has a primary gateway configured, in the
    Delivery Gateways
    section, click
    Add a Delivery Gateway
    to add a second gateway.

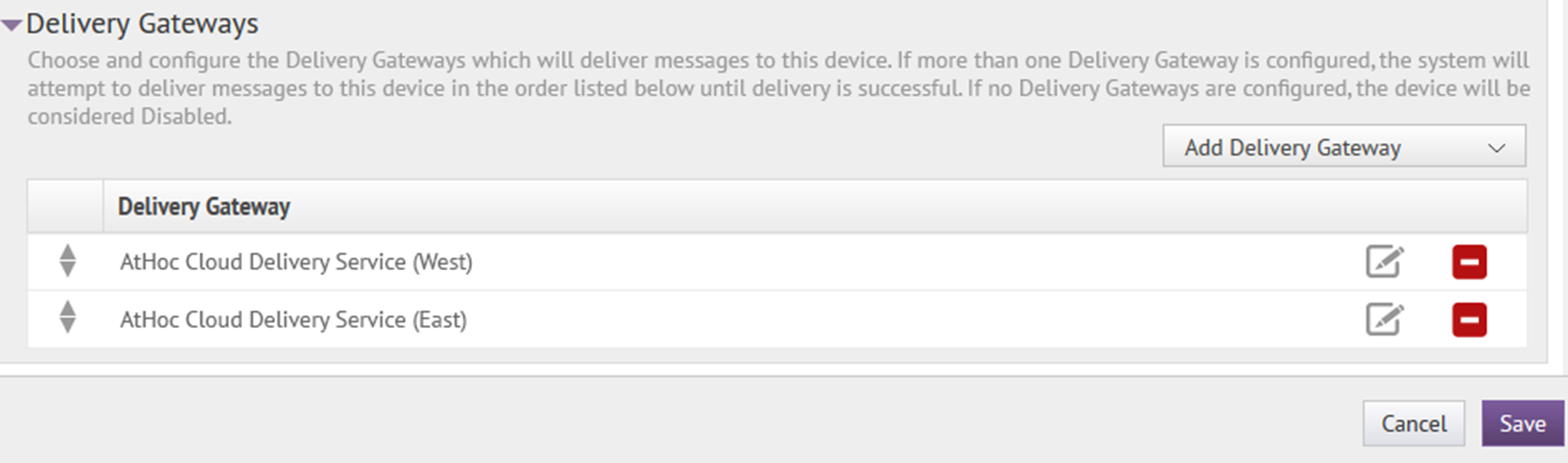

    Delivery Gateways section of device details page
  6. Click The Edit icon.
  7. On the
    Configure Gateway
    window, modify the XML statements as needed for your organization.

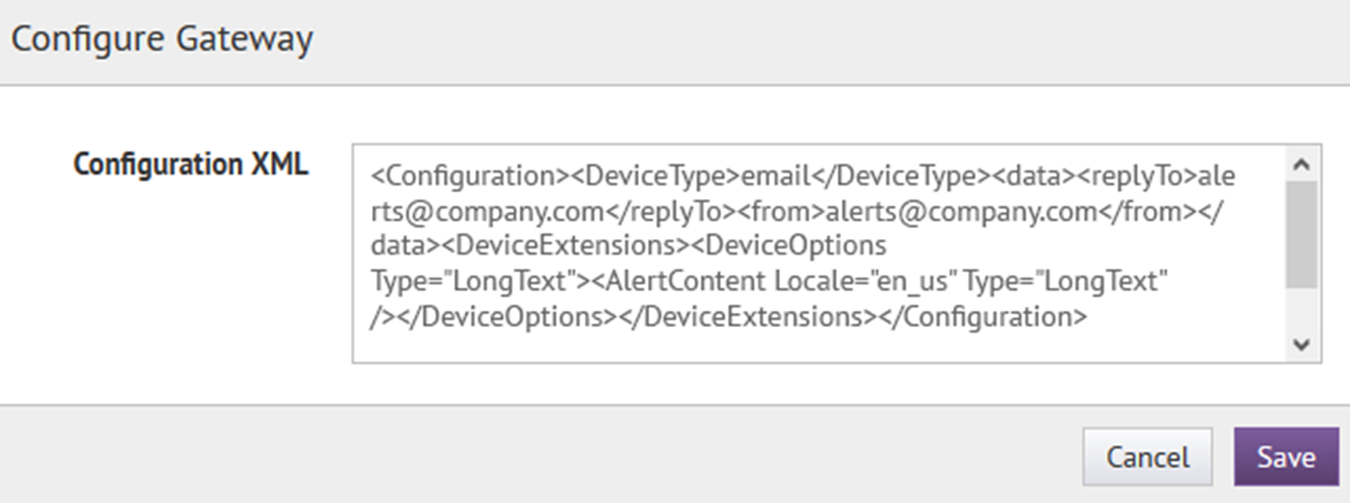

    The Configure Gateway window
  8. Click
    Save
    .
