View users on the live map

Users last known locations can be displayed on the live map. A user's last known location is updated when they do any of the following from the
BlackBerry AtHoc
 mobile app:
  • Check-in
  • Check-out
  • Send a report
  • Send an emergency
  • Enable the tracking feature
  • Enable scheduled location access
  1. Click The Distribution List Layers Panel icon in the top navigation bar to open the Distribution List Layers panel. Distribution lists that are selected in the
    BlackBerry AtHoc
     management system under
    Settings
     >
    Map Settings
     appear on the panel. For more information, see Distribution list layers.

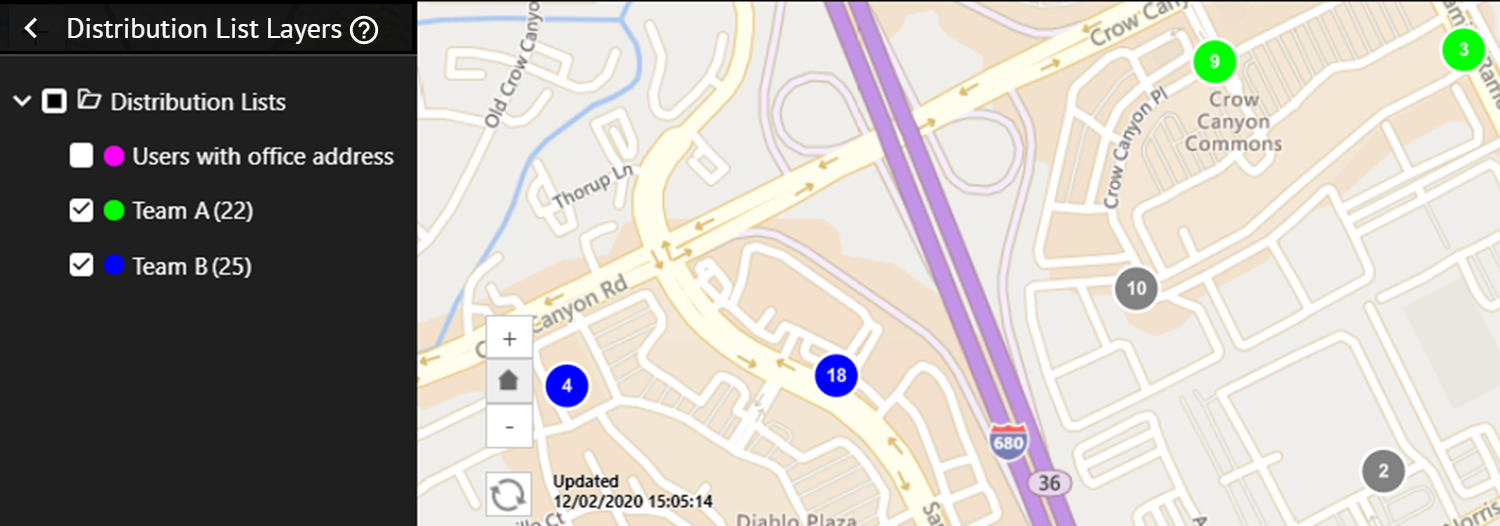

  2. On the
    Distribution List Layers
     panel, select the check box beside a distribution list layer to display it on the map. When a check box is selected, the name of the selected distribution list updates to include the number of users that are displayed on the map for the distribution list. You can select multiple distribution lists.
  3. Optionally, click the name of a selected distribution list to zoom the map to display the users in the distribution list on the map. The number of users is displayed in a circle with a color that matches the color designated for the distribution list.
    View Multiple Distribution Lists on the Live Map

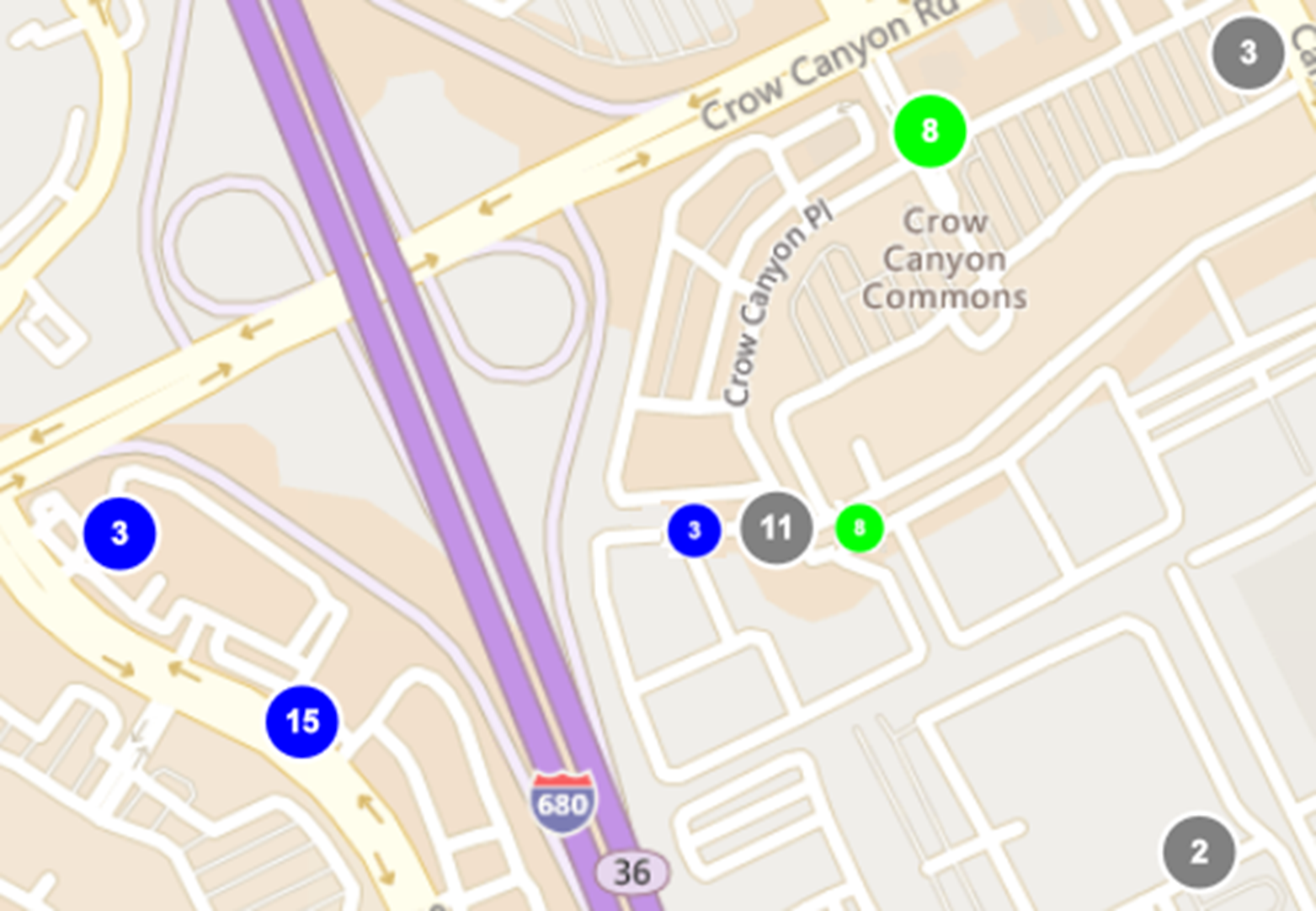

  4. When users from different selected distribution lists are in the same location, they are displayed in a grey circle. Only unique users are displayed in the count. If the same user is a member of multiple distribution lists, they are counted as one user in the grey circle. Click a grey circle to display separate circles that have users from the selected distribution lists:
    Click to show members of different distribution list
  5. Optionally, click a circle to open the user details pop-up. The user details pop-up displays the last known location and distribution list membership for a user. The last known location includes a timestamp of when the user's location was last updated.
  6. Optionally, click
    Show More Info
     to display the attributes, groups, and devices for the user. The details of the user pop-up can be configured in
    Settings
     >
    General Settings
     >
    Layouts
     >
    User Details - Popup View
    .
  7. Optionally, click The Dock Pop-Up icon to dock the user details pop-up to the right side of the map.
  8. Optionally, click
    Zoom to
     to move the map view to the user.
  9. Optionally, click The View Next User icon to display the details for the next user.
    The The View Next User icon icon appears only when more than one user is displayed in the selected location.
  10. Optionally, select the
    Dynamic Map Zoom
     option to keep the map focus on selected groups or individual users.
